GNSS UAV/HELIX Antenna LSY4N12A

GNSS UAV/HELIX Antenna LSY4N12A

GNSS UAV/HELIX Antenna LSY4N12A

GNSS UAV/HELIX Antenna LSY4N12A

GNSS UAV/HELIX Antenna LSY4N12A

Product Description

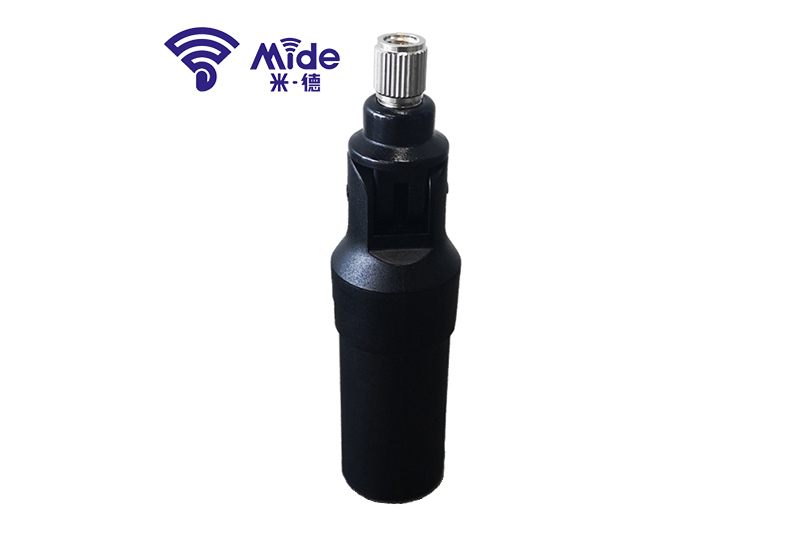

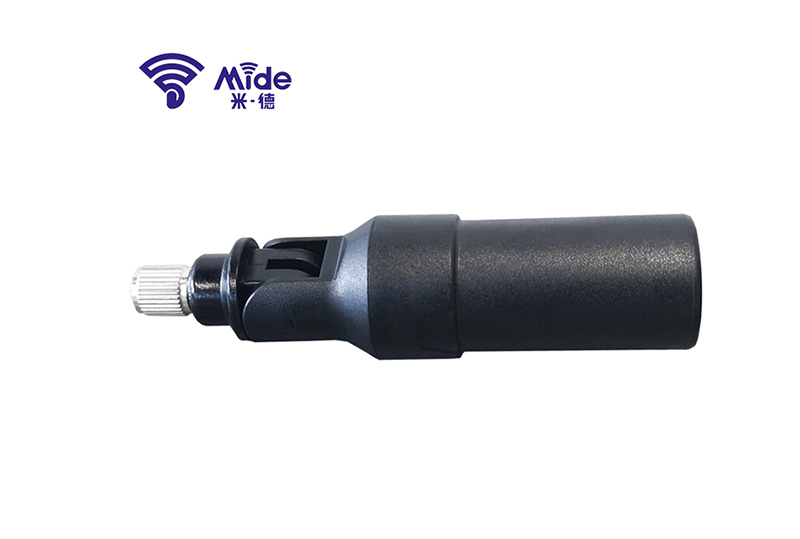

Helix Antenna LSY4N12A

LSY4N12A can be used with a variety of receivers, widely used in uav, handheld terminal equipment and small RTK equipment and other fields, can effectively meet the needs of users.

Product Features

Product Advantages

Product Advantages

Supports GPS L1/L2, GLONASS L1/L2, BD B1/B2/B3 signal reception

High precision, high sensitivity and high reliability

Small size, weight less than or equal to 30g

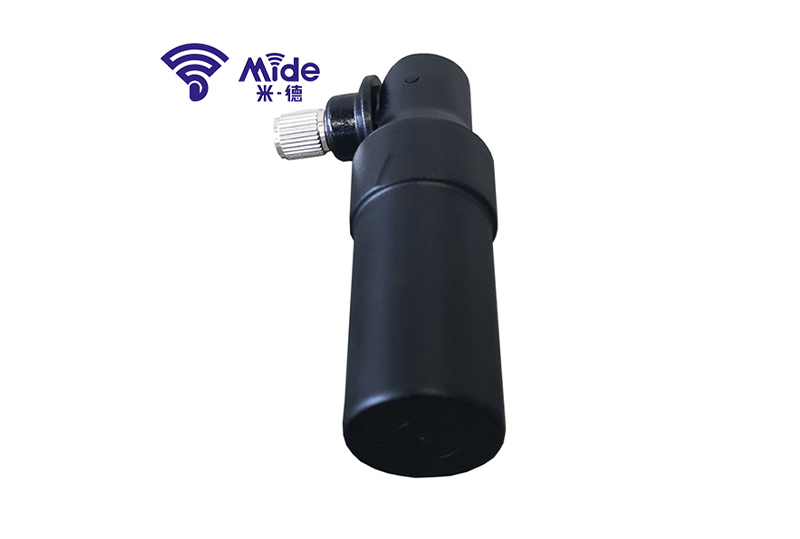

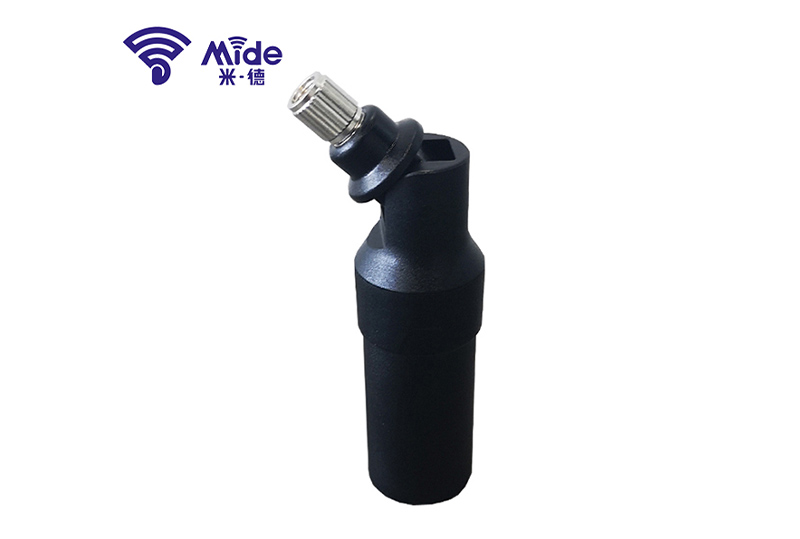

Movable shaft design, can move 90 degrees

Specifications

Antenna
Frequency Range(MHz)GPS L1/L2
GLONASS L1/L2
BD B1/B2/B3GALILEO E1/E2/E5a/E5b
Maximum Gain(dBi)2.5
VSWR≤1.8
Antenna AR (dB)≤3.0
PolarizationRHCP
Port Impedance(Ω)50Ω
LNA
LNA Gain(dB)33±2
Noise Figure≤1.8
Operating Voltage(V)3-12 DC
Operating Current(mA)≤42mA
Physical
Connector TypeSMA-J
Antenna size(mm)Φ27.5×105.6mm
Antenna Weight(g)≤30g
Operating Temperature(℃)-40-+70 ℃
Storage Temperature(℃)-55-+85 ℃
