Product Description

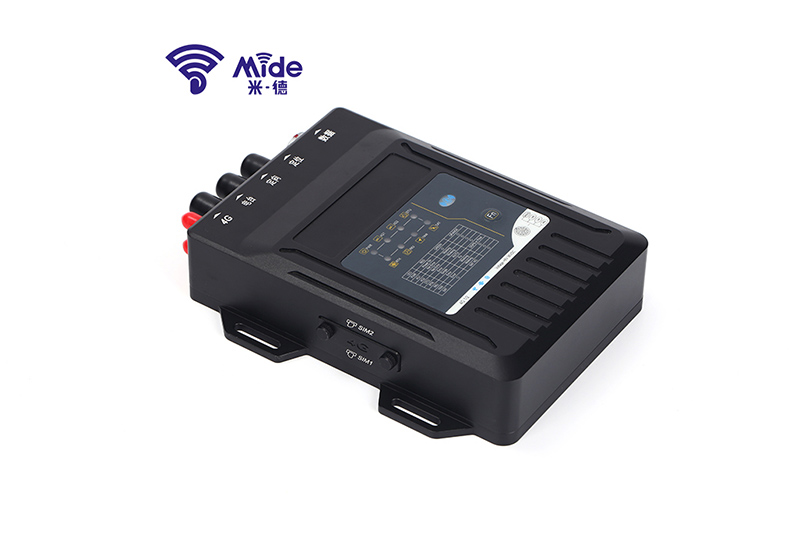

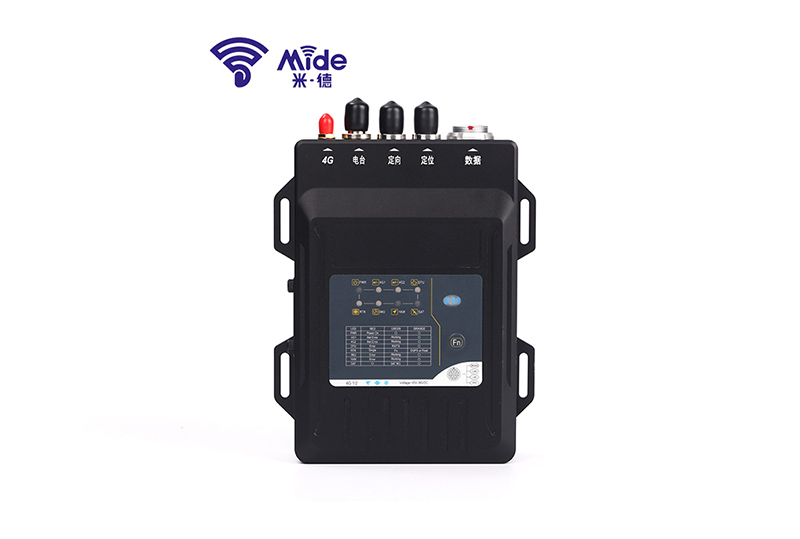

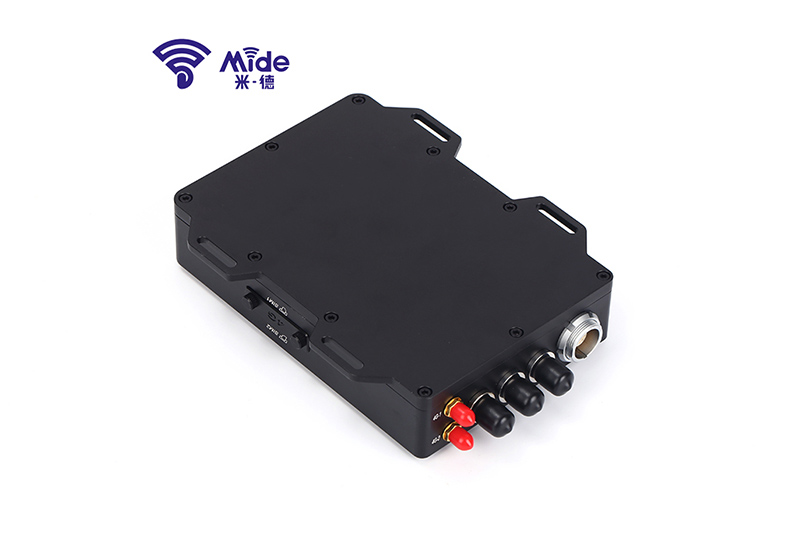

GNSS Receiver INS-YI100C

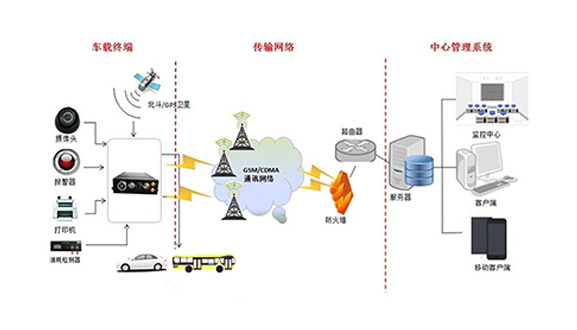

INS-YI100C is a high-performance GNSS receiver that can achieve high-precision positioning and orientation functions.Data communication link supports 4G network and frequency hopping radio communication modes, which can realize differential positioning service in various environments, and can also be attached to other data links to provide attitude data for carriers.The products are mainly used in uav, robot, vehicle-mounted and other fields, such as robot high-precision positioning solutions, precision agricultural mobile stations and base stations, vehicle-mounted and shipborne equipment, etc.

Product Features

Product Features

Product Features

RTK carrier differential positioning technology is used to achieve centimeter high precision positioning.

Supports single-card and dual-card working modes and more stable data links.

Rich data interfaces Provides network, serial port, CAN, and PPS interfaces.

Support short distance radio differential mode and long distance network mode.

High reliability, high integration, small size, and support for firmware upgrade.

Specifications

Antenna
Frequency Range(MHz)GPS L1C/A L2C, GLO L1OF L2OF,
GAL E1B/C E5b, BDS B1I B2I,
QZSS L1C/A L2C
RTKFrequency: Maximum 20HZ
Lock Time: 10 sec
Direction Finding Accuracy0.2 degrees/1m baseline
Positioning AccuracySingle Point Positioning;2.0m CEP
RTK:0.02m + 1ppm CEP
Speed Accuracy(RMS)0.03m/s
Data Rate (max)20Hz
Structural
Antenna Size(mm)225×120×60mm
Weightabout 1kg

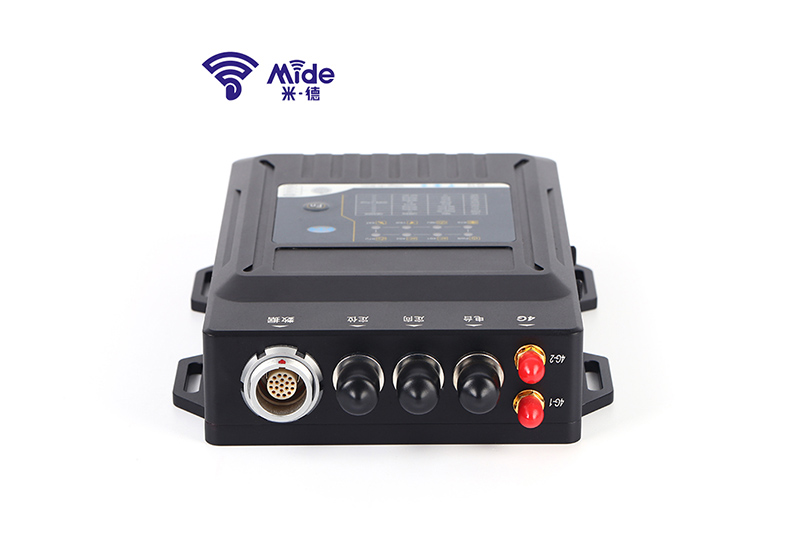

Directional Positioning Antenna InterfaceTNC(Female)
Radio Antenna InterfaceTNC(Female)
4G Antenna InterfaceSMA(Female)
Waterproof and Dustproof GradeIP67
Bluetooth Connection Distance10m
Operating Voltage9~30V
Power Consumption (typ.)Built-in Radio (4W): 12V DC
Built-in 4G Module (5W): 12V DC
Operating Environment
Operating Temperature(℃)-20-+85 ℃
Storage Temperature(℃)-40-+85 ℃
Humidity95% No Condensing
