GNSS Receiver X200 Supplier

Product Description

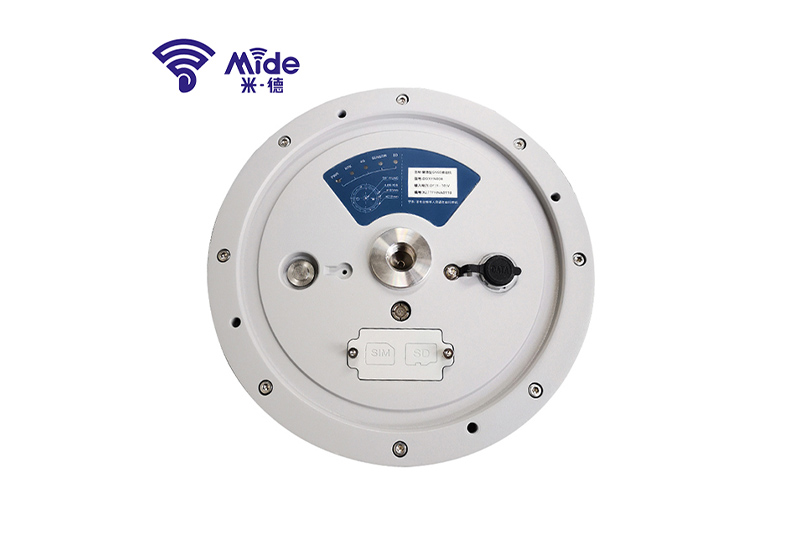

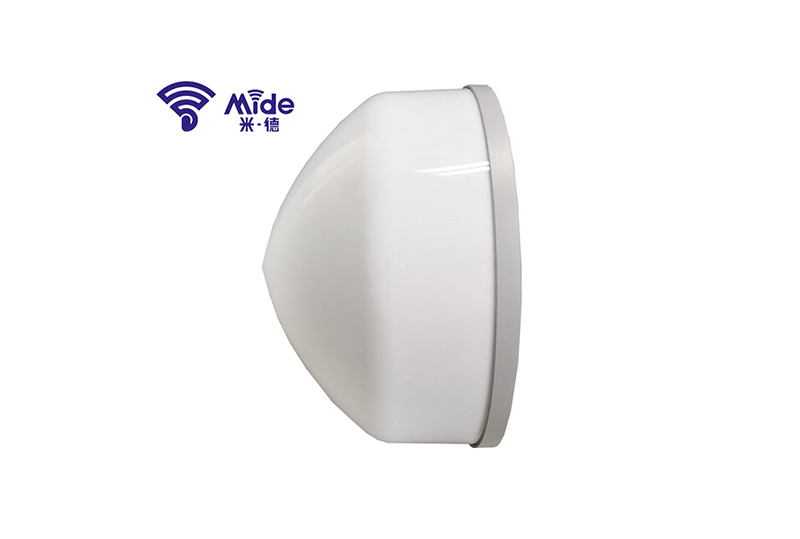

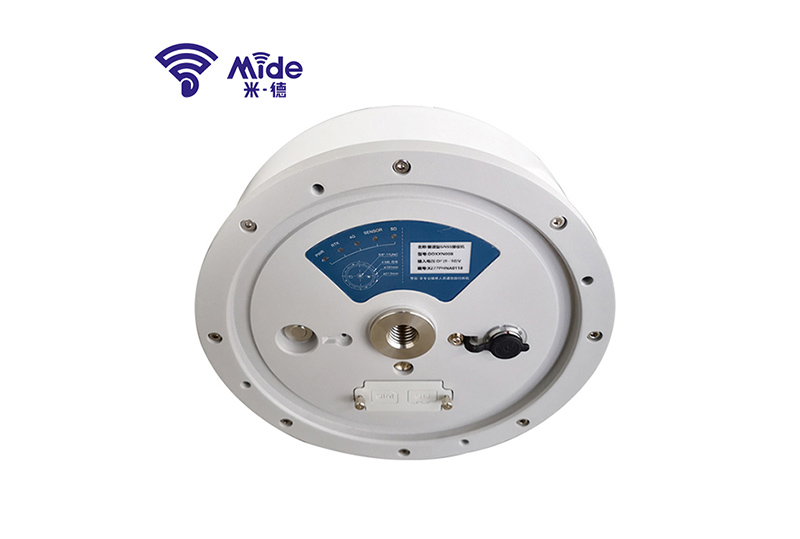

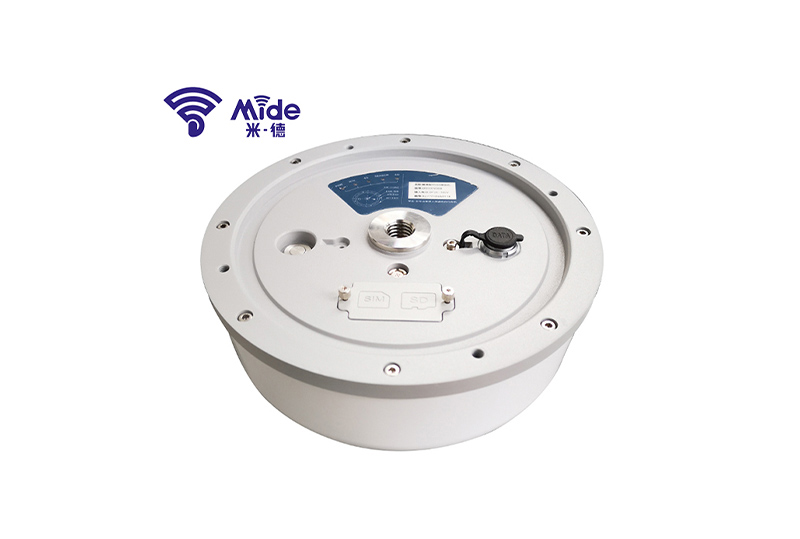

GNSS Receiver X200

The Mide X200 GNSS Receiver is a highly integrated receiver that can be connected to external sensors. Support mobile station and base station two working modes, support MQTT, NTRIP and TCP communication. The product is mainly used in geological disaster monitoring, deformation monitoring and other fields, high precision, high reliability.

The Mide GNSS Receiver offers impressive direction finding accuracy with a precision of 0.2 degrees over a 1-meter baseline. For positioning accuracy, the Mide GNSS Receiver provides Single Point Positioning with a 1.5m CEP, while the RTK accuracy is 0.02m + 1ppm CEP, ensuring highly accurate data in real-time. The Mide GNSS Receiver also boasts a speed accuracy of 0.03m/s (RMS), allowing for precise movement tracking. With a maximum data rate of 20Hz, the Mide GNSS Receiver ensures rapid data acquisition for dynamic applications.

In terms of operating environment, the Mide GNSS Receiver is designed to function within a temperature range of -20°C to +85°C, while it can be stored in conditions ranging from -40°C to +85°C. Additionally, the Mide GNSS Receiver is built to withstand up to 95% humidity without condensation, making it durable and reliable even in harsh conditions.

Product Features

Multi-system and multi-frequency high-precision satellite antenna and board are used to provide high-quality original data to the server.

Highly integrated, supports firmware upgrade and can be connected to external sensors.

All-weather real-time automatic monitoring can meet the needs of users to master the instantaneous deformation of the monitored body in real time.

Integrated design simplifies installation process.

Related News

How to Choose the Right GNSS Receiver for Your Needs

Dec. 19, 2024

Global Navigation Satellite System (GNSS) receivers have become an indispensable part of modern navigation systems. Whether you're a surveyor, an engineer, or an outdoor adventurer, choosing the right GNSS receiver is crucial to ensuring accurate positioning and timing. In this article, we'll guide you through the key factors to consider when selec

Explore more

The Future Light Of Indoor Precise Positioning

Dec. 06, 2024

This article proposes a fusion positioning algorithm of 5G+UWB, which significantly improves the accuracy and stability of indoor positioning by combining the advantages of both technologies.

Explore more

Low Cost And High Precision: a New Breakthrough in GNSS, IMU, and LiDAR Integrated Navigation

Nov. 21, 2024

In modern navigation and positioning technology, how to improve the anti-interference and accuracy of navigation and positioning under the conditions of low-cost satellite receivers and inertial measurement units (IMUs) has always been an important research topic.

Explore more

How Does a GNSS Receiver Work?

Nov. 06, 2024

Global Navigation Satellite Systems (GNSS) receivers are essential devices in today's world, enabling users to determine their precise location anywhere on Earth. By leveraging signals from satellites orbiting the planet, these receivers can provide positioning, navigation, and timing information. In this article, we explore how GNSS receivers w

Explore more

A New Breakthrough in Precision Single Point Positioning with Multi Frequency Signal Assistance

Oct. 25, 2024

With the continuous development of Global Navigation Satellite Systems (GNSS), Europe's Galileo system has become a leader among them.

Explore more

Applications of Geodetic Antenna

Oct. 10, 2024

This article explores the various applications of geodetic antennas and their significance in modern technology.

Explore more

What Are the Benefits of Geodetic Antenna

Sep. 19, 2024

Geodetic antennas play a crucial role in modern surveying and geolocation applications. Designed to support high-precision measurements, these antennas offer numerous advantages that make them indispensable in fields such as geodesy, land surveying, and navigation. This article explores the key benefits of geodetic antennas and their importance in

Explore more

Advanced Noise Reduction Technology Helps Improve The Accuracy of Mining Subsidence Monitoring

Sep. 06, 2024

In modern mining, accurate monitoring and analysis of mining subsidence are important links to ensure safe production.

Explore more

Breaking Through The Difficulty of Robot Localization in GNSS Denial Environment

Aug. 21, 2024

In today's era of intelligent development, mobile robots have become important tools in many industries. However, achieving high-precision positioning remains a huge challenge in environments where Global Navigation Satellite System (GNSS) signals are limited or denied. In response to this issue, researchers have proposed an improved adaptive ge

Explore more

How Geodetic Antennas Work

Aug. 07, 2024

Geodetic antennas are essential tools used in geodetic surveying, a precise method of measuring the Earth's shape, orientation, and gravitational field. These antennas play a crucial role in collecting data for various applications such as mapping, navigation, and monitoring tectonic movements. In this article, we will delve into the workings of ge

Explore more

Antenna
Frequency Range（MHz）	GPS: L1, L1C, L2C, L2P, L5 BDS-2: B1I, B2I, B3I BDS-3: B1I, B3I, B1C, B2a, B2b* GLONASS: G1, G2, G3* Galileo: E1, E5a, E5b, E6C * QZSS: L1, L2C, L5* SBAS: L1*
RTK	Frequency: Maximum 20HZ Lock Time: 10 sec
Direction Finding Accuracy	0.2 degrees/1m baseline
Positioning Accuracy	Single Point Positioning;1.5m CEP RTK:0.02m + 1ppm CEP
Speed Accuracy(RMS)	0.03m/s
Data Rate (max)	20Hz

Structural
Antenna Size（mm）	Φ191×129mm
Weight	about 3kg
Radio Antenna Interface	TNC（Female）
Waterproof and Dustproof Grade	IP67
Operating Voltage	9~30V
Power Consumption (typ.)	Built-in radio (4W): 12V DC Built-in 4G module (5W): 12V DC

Operating Environment
Operating Temperature（℃）	-20-+85 ℃
Storage Temperature（℃）	-40-+85 ℃
Humidity	95% No Condensing
