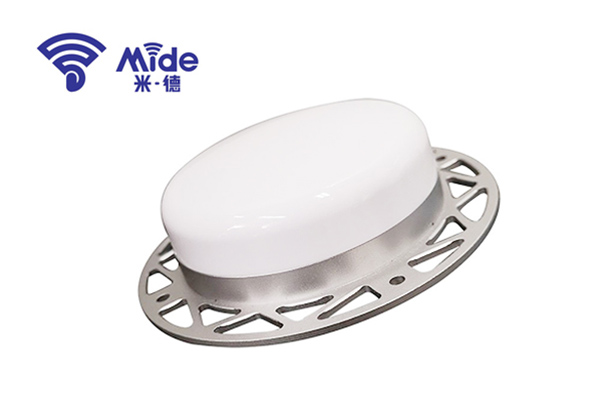

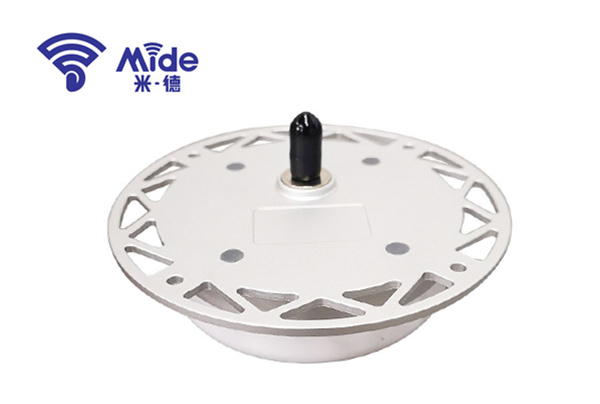

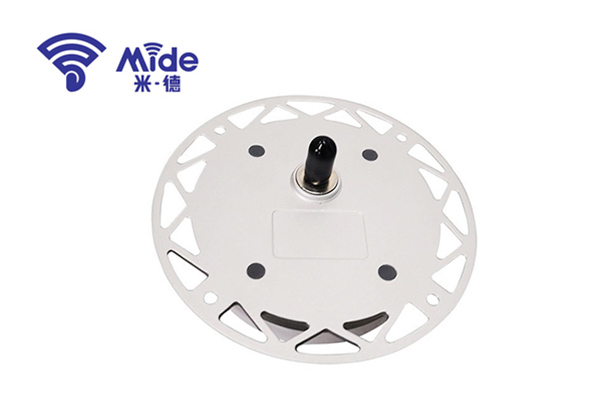

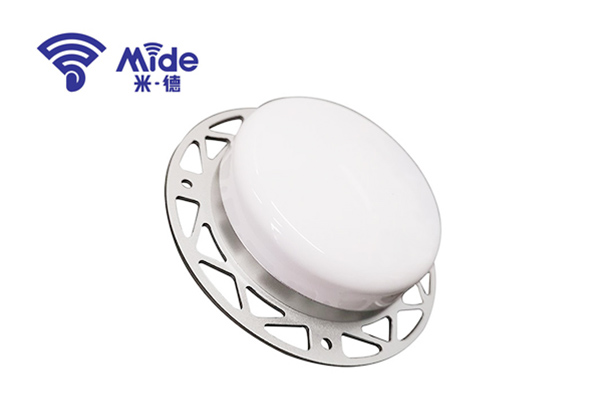

Four Star GNSS Aviation Antenna LHY3705A
Four Star GNSS Aviation Antenna LHY3705A
Four Star GNSS Aviation Antenna LHY3705A
Four Star GNSS Aviation Antenna LHY3705A
Four Star GNSS Aviation Antenna LHY3705A
Product Description
Aviation Antenna LHY3705A
LHY3705A is a high performance aviation antenna which offers superior satellite signal tracking, including BeiDou, GPS, GLONASS and GALILEO. type antenna. It features small size, high-gain, low wind resistance, high sensitivity and low power consumption, which greatly improves the accuracy and speed of high-speed moving carrier positioning. It can be used with a variety of receivers, quite suitable for high-speed moving systems.
Product Features
Product Advantages
Low wind resistance, low power consumption
Compact aviation base antenna design, small size with a light weight of 120g, and the IP67 ruggedized cover protect the antenna from dust and water
High-gain, high sensitivity
High Phase Center Stability
Specifications
| Antenna | |
| Frequency Range（MHz） | BD B1/B2/B3 GPS L1/L2 GLONASS L1/L2 |
| Maximum Gain（dBi） | 4 |
| Antenna AR （dB） | ≤3.0（elevation angle 90°） |
| VSWR（Passive Antenna ） | ≤2.0 |
| Polarization | RHCP |
| Port Impedance（Ω） | 50Ω |
| LNA | |
| LNA Gain（dB） | 35±2 |
| Noise Figure | ≤2.0 |
| In-band Flatness（dB） | ±2 |
| VSWR（Active Antenna） | ≤2.0 |
| Operating Voltage（V） | 3.3-12 VDC |
| Operating Current（mA） | ≤45mA |
| Physical | |
| Connector Type | SMA-K（Can be customized） |
| Antenna Size（mm） | Φ90*27mm（Without Connector） |
| Antenna Weight(g) | ≤150g |
| Operating Temperature（℃） | -45-+85 ℃ |
| Storage Temperature（℃） | -55-+85 ℃ |
| Relative Humidity | 95% |
