Product Description

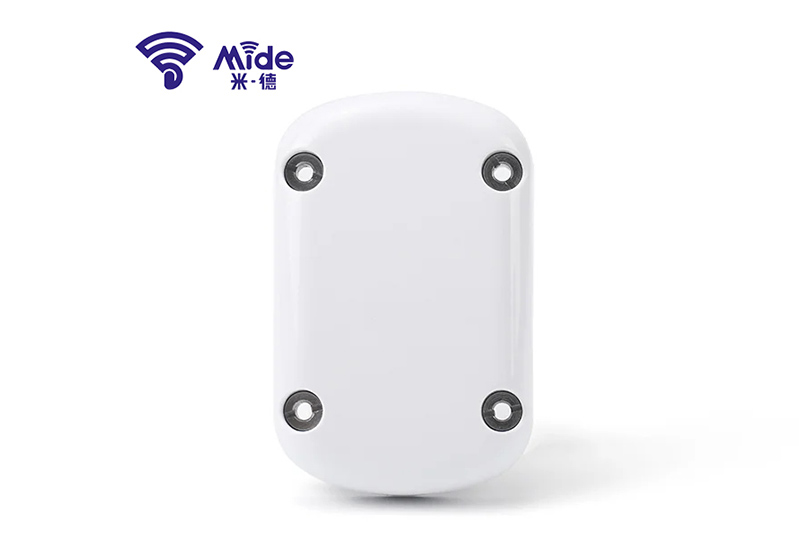

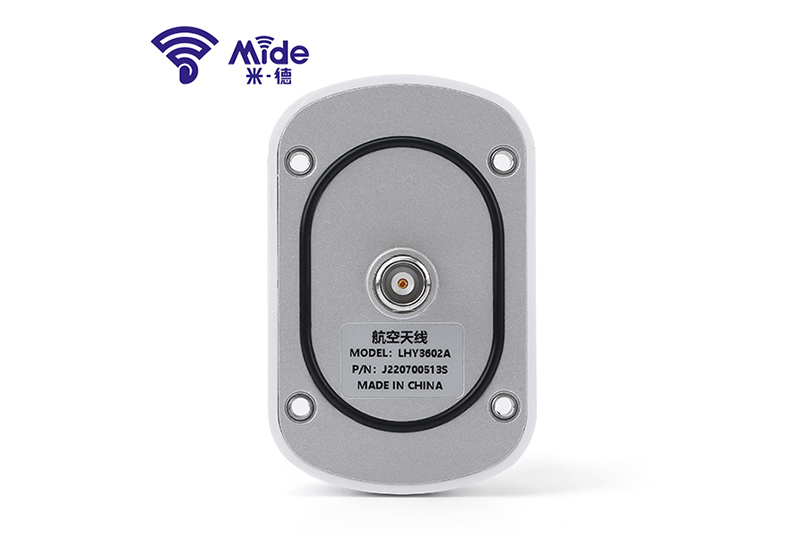

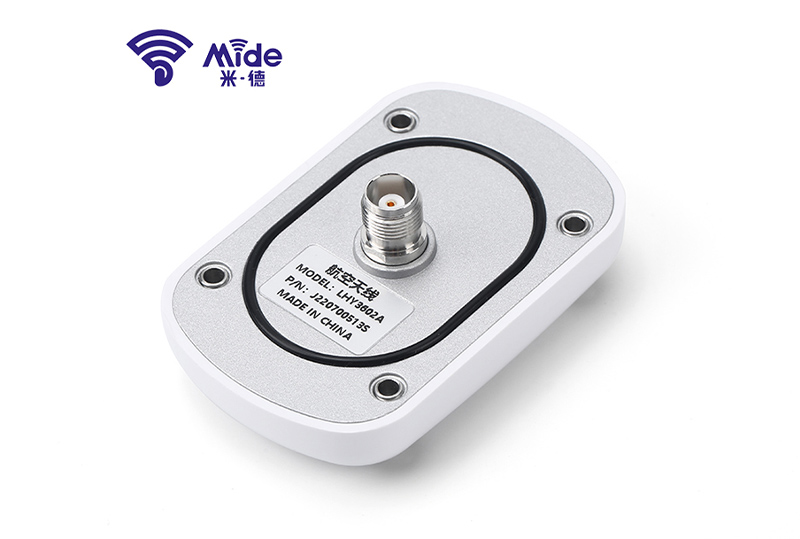

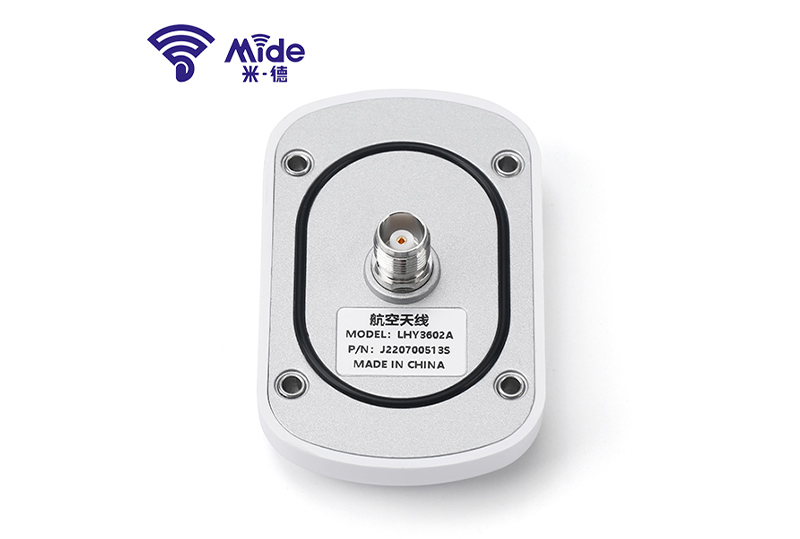

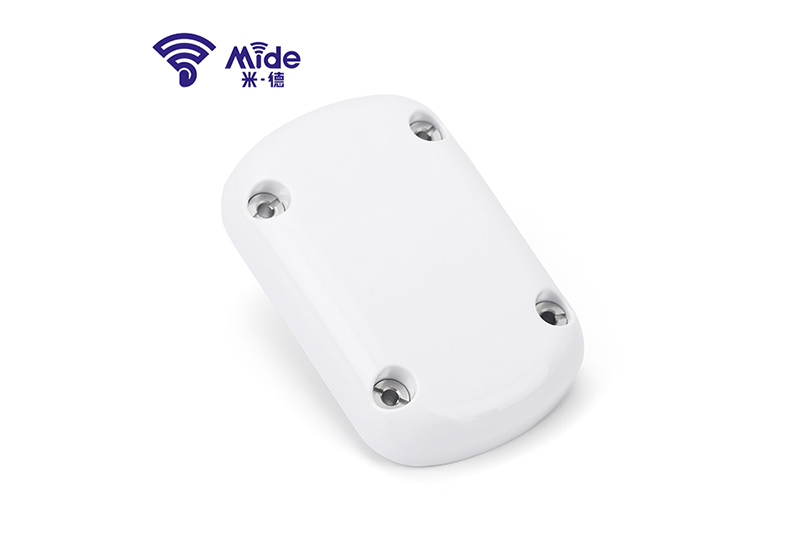

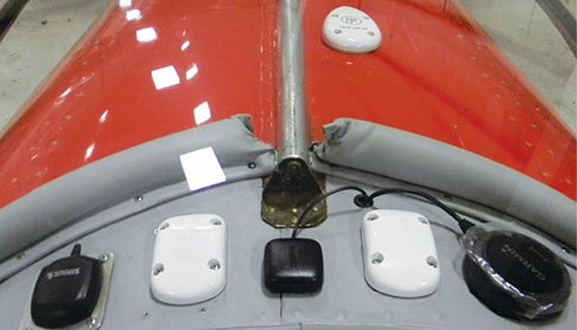

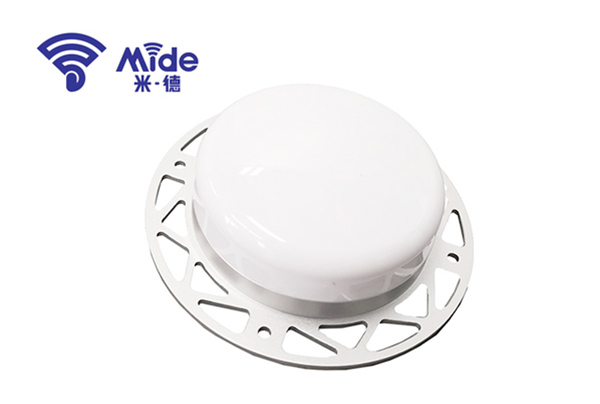

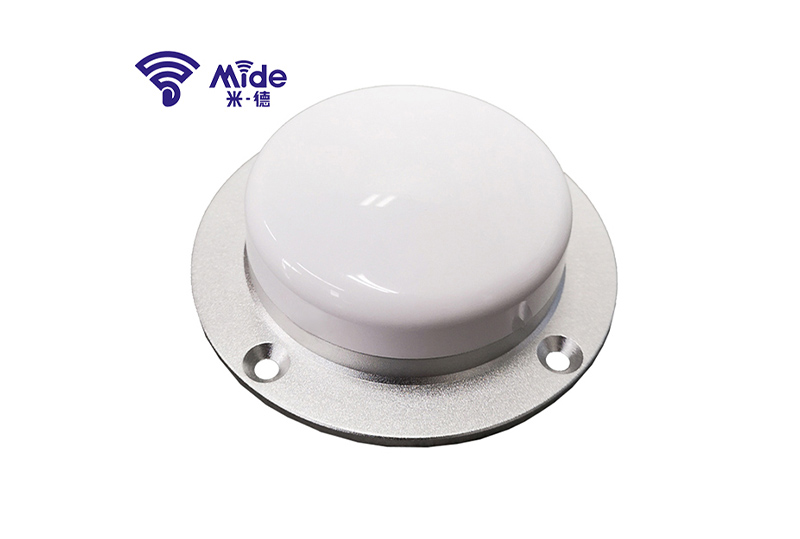

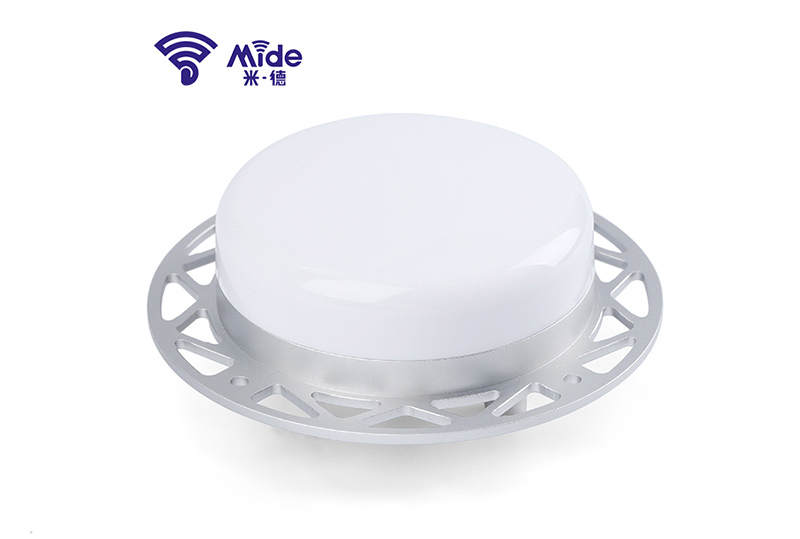

Aviation Antenna LHY3602A

LHY3602A is a high gain, low wind resistance type aerial antenna, which can meet the requirements of motion carrier positioning and speed measurement in high dynamic environment. It can be used with a variety of satellite navigation receivers, widely used in navigation scheduling, tracking monitoring, measurement and control, military and other fields.

Product Features

Product Advantages

Product Advantages

Support GPS+ GLONASS+ Beidou signal reception

Streamlined appearance, delicate and small, light weight, reliable structure

Low power consumption, high sensitivity, high reliability

Adopt integral waterproof design, waterproof grade reaches IP67

Specifications

Antenna
Frequency Range(MHz)BD B1/B2
GPS L1/L2
GLONASS L1/L2
Maximum Gain(dBi)3.0
Antenna AR (dB)≤3.0(elevation angle 90°)
VSWR(Passive Antenna )≤2.0
PolarizationRHCP
Port Impedance(Ω)50Ω
LNA
LNA Gain(dB)35±2
Noise Figure≤2.0
In-band Flatness(dB)±2
VSWR(Active Antenna)≤2.0
Operating Voltage(V)3.3-12 VDC
Operating Current(mA)≤45mA
Physical
Connector TypeTNC-K
Antenna Size(mm)Φ86.35*55.7*32mm(Without Connector)
Antenna Weight(g)≤135g
Operating Temperature(℃)-45-+85 ℃
Storage Temperature(℃)-55-+85 ℃
Relative Humidity95%
