Product Description

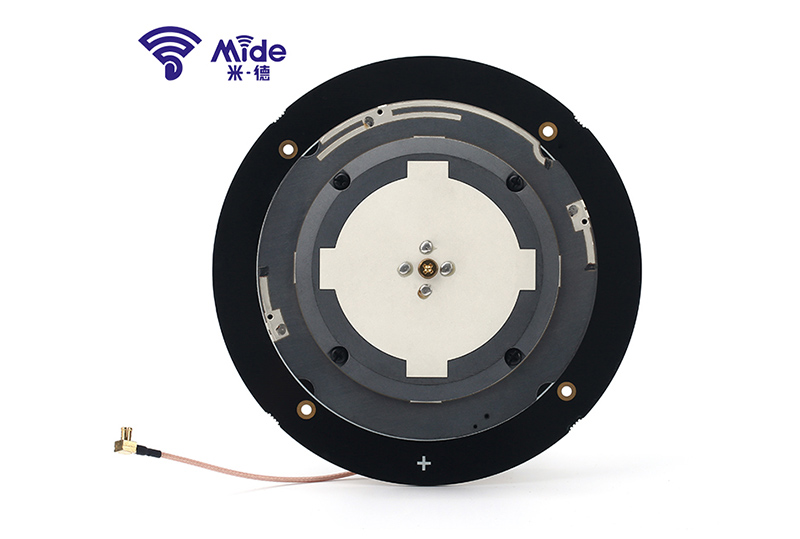

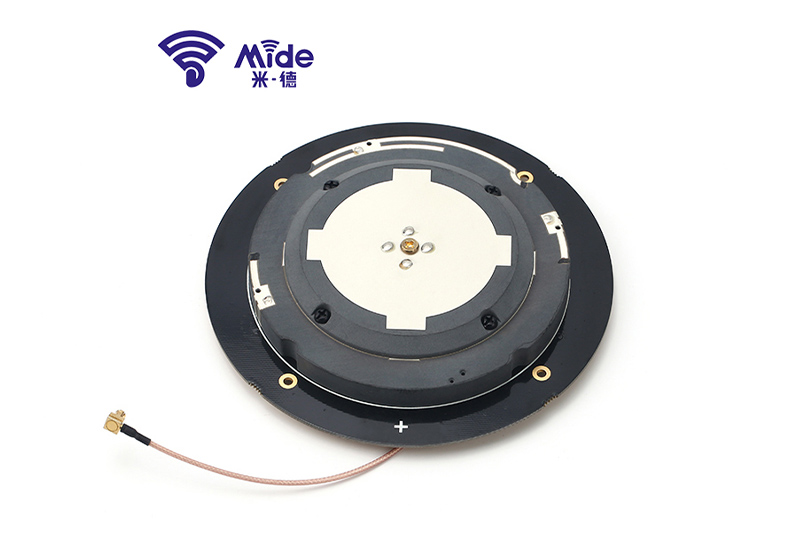

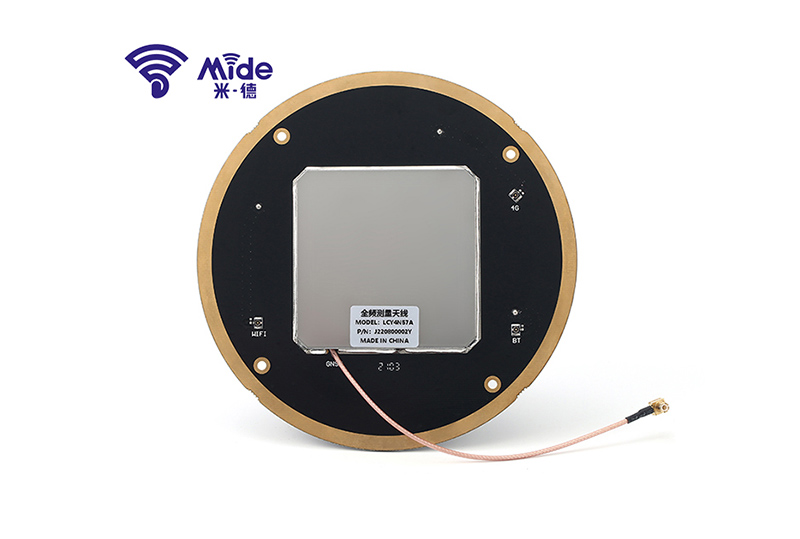

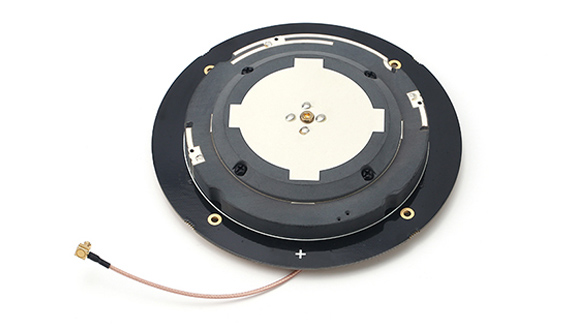

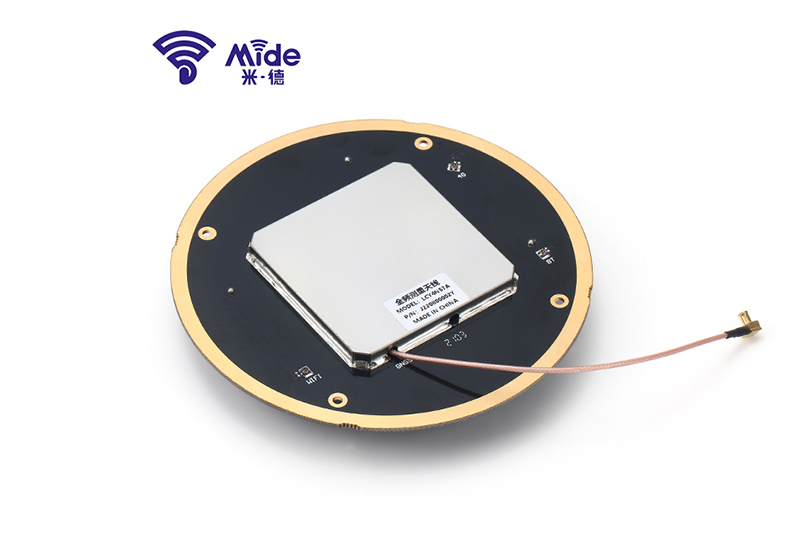

Geodetic Antenna LCY4N57A

LCY4N57A is a four-star full-frequency measurement antenna, which has the characteristics of high gain, miniaturization, high sensitivity, multi-system compatibility and high reliability. It is widely used in geodetic mapping, waterway mapping, precision agriculture and Marine surveying, etc. It can also be used in the military field according to the application conditions.

Product Features

Product Advantages

Product Advantages

Stable phase center guarantees the accuracy of positioning within millimeter-level

Strong Anti-interference Performance

High gain, miniaturization, high sensitivity and precision

Robust low-elevation satellite tracking

Specifications

Antenna
Frequency Range(MHz)GPS L1/L2/L5
GLONASS L1/L2/L5
BD B1/B2/B3
GALILEO E1/E2/E5a/E5b
BT/WIFI/4G
VSWR≤2.0
Maximum Gain(dBi)5
Antenna AR (dB)≤3.0
Azimuth Coverage(°)360°
Phase Center Error(mm)±2
PolarizationRHCP
Port Impedance(Ω)50Ω
LNA
LNA Gain(dB)40±2
Band flatness(dB)±2
Noise Figure≤2.0
VSWR≤2.0
Operating Voltage(V)3.3-15 VDC
Operating Current(mA)≤45mA
Physical
Connector TypeMCX-C-JW1.5
Antenna size(mm)Φ140.5×23.6mm
Antenna Weight(g)≤250g
Operating Temperature(℃)-40-+70 ℃
Storage Temperature(℃)-55-+85 ℃
Humidity95% No Condensation
