Product Description

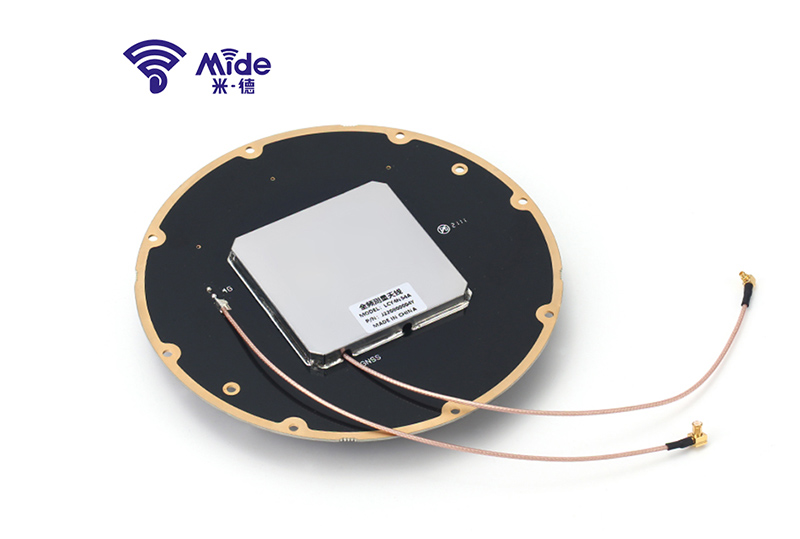

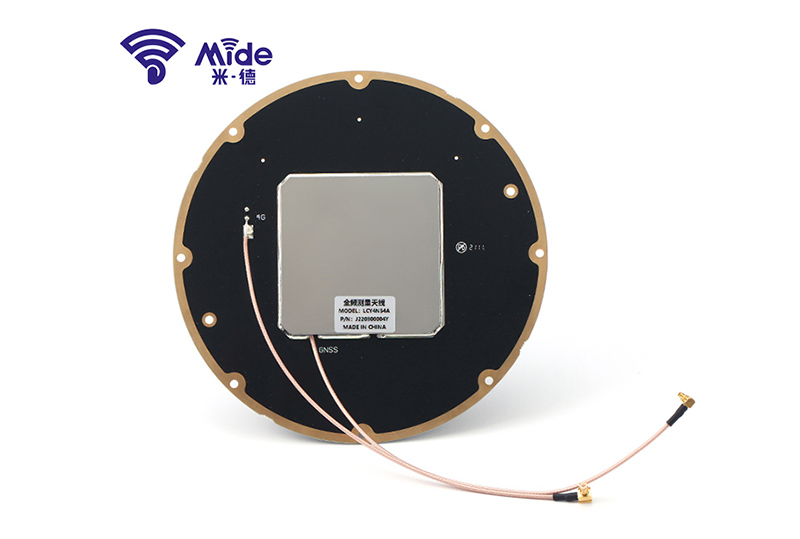

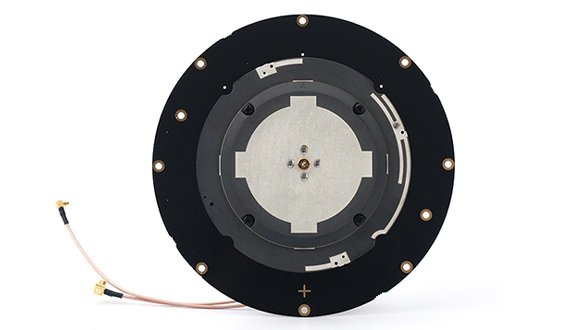

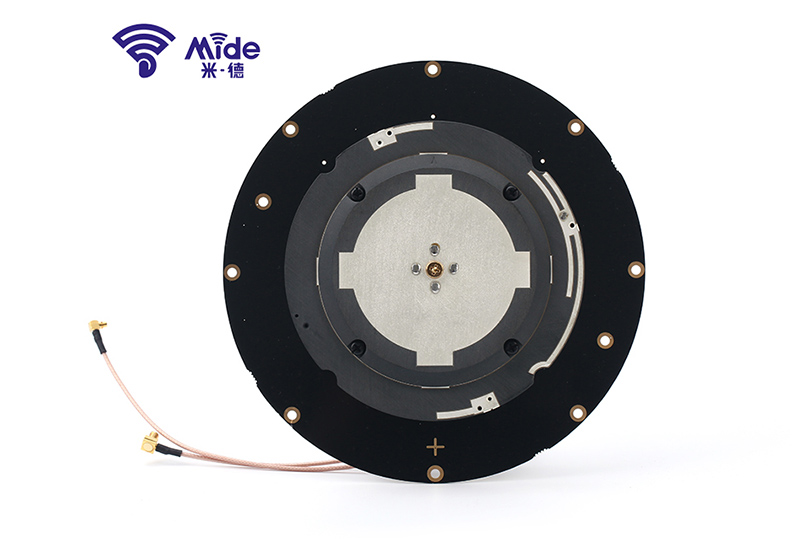

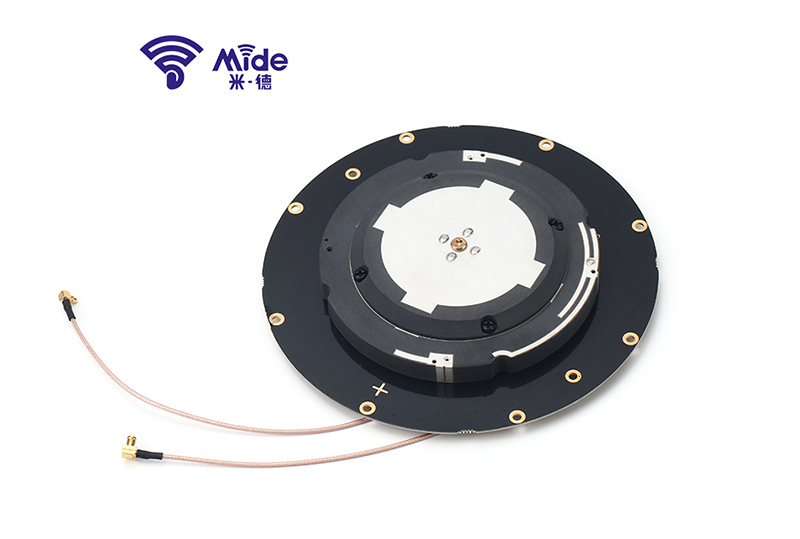

Geodetic Antenna LCY4N54A

LCY4N54A is a four-star full-frequency measurement antenna with high gain, high sensitivity, high reliability and other characteristics, widely used in surveying and mapping, precision agriculture, can also be selected according to the application conditions in special fields, support customization.

Product Features

Product Advantages

Product Advantages

Support the GPS L1 / L2 / L5 GLONASS L1/L2/L3 BD B1/B2/B3 GALILEO E1/E2/E5a/E5b 4G mobile communication

Adopts multi-feed point design, ensures the performance of right-hand circular polarization and phase center, reduces the influence of measurement error.

Strong Anti-interference Performance

High gain, miniaturization, high sensitivity

Specifications

Antenna
Frequency Range(MHz)GPS L1/L2/L5
GLONASS L1/L2/L3
BD B1/B2/B3
GALILEO E1/E2/E5a/E5b
4G
VSWR<2.0
Maximum Gain(dBi)5
Antenna AR (dB)≤3.0
Azimuth Coverage(°)360°
Phase Center Error(mm)±2
PolarizationRHCP
Port Impedance(Ω)50Ω
LNA
LNA Gain(dB)40±2
Band flatness(dB)±2
Noise Figure≤2.0
VSWR≤2.0
Operating Voltage(V)3.3-15 VDC
Operating Current(mA)≤45mA
Physical
Connector TypeMCX-J
Antenna size(mm)Φ140.5×23.2mm
Antenna Weight(g)≤250g
Operating Temperature(℃)-40-+70 ℃
Storage Temperature(℃)-55-+85 ℃
Humidity95% No Condensation
