Product Description

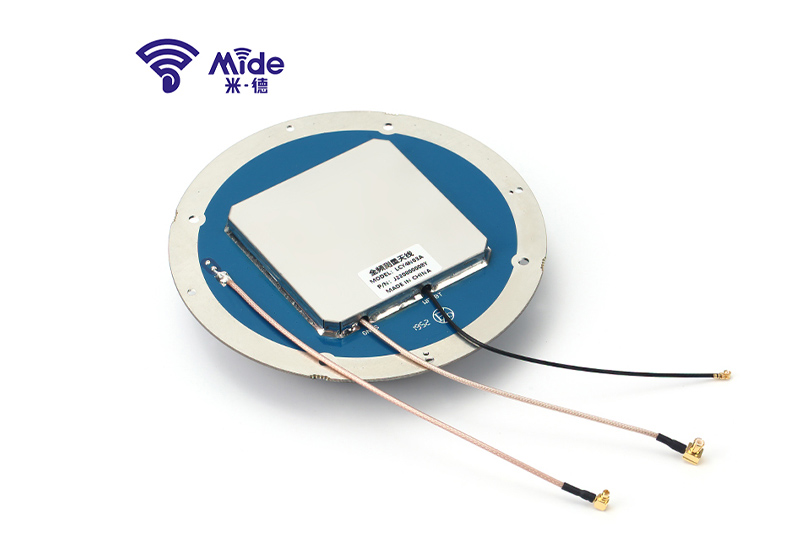

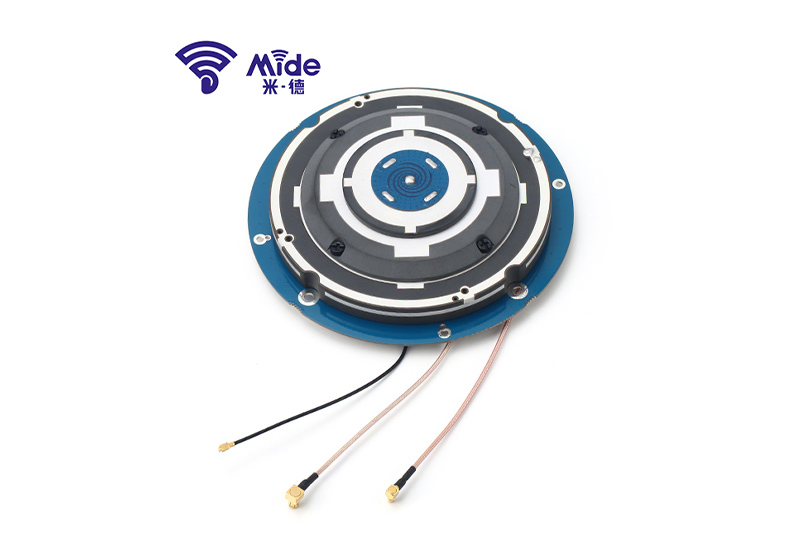

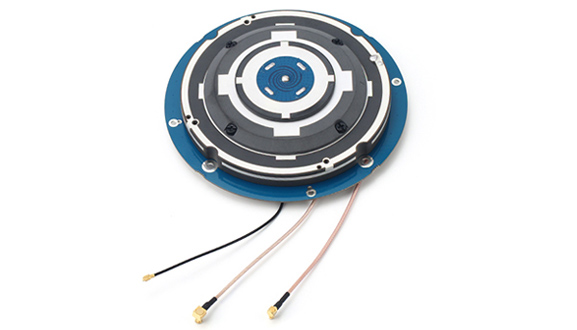

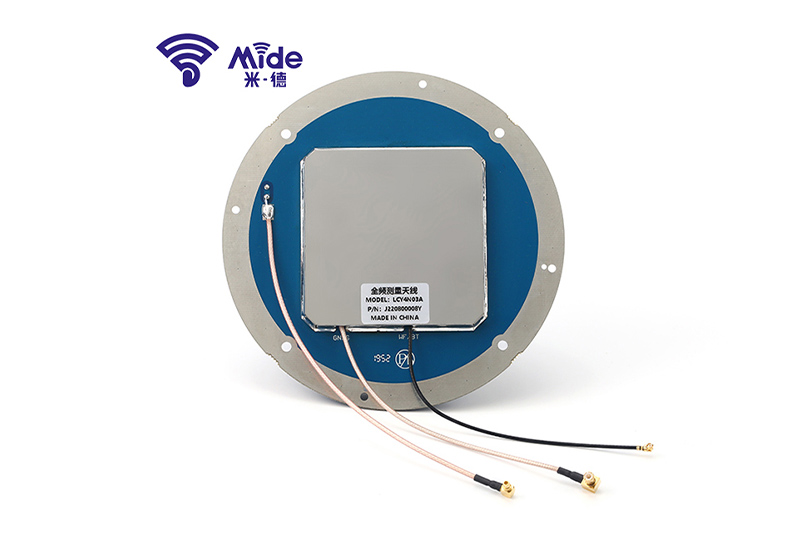

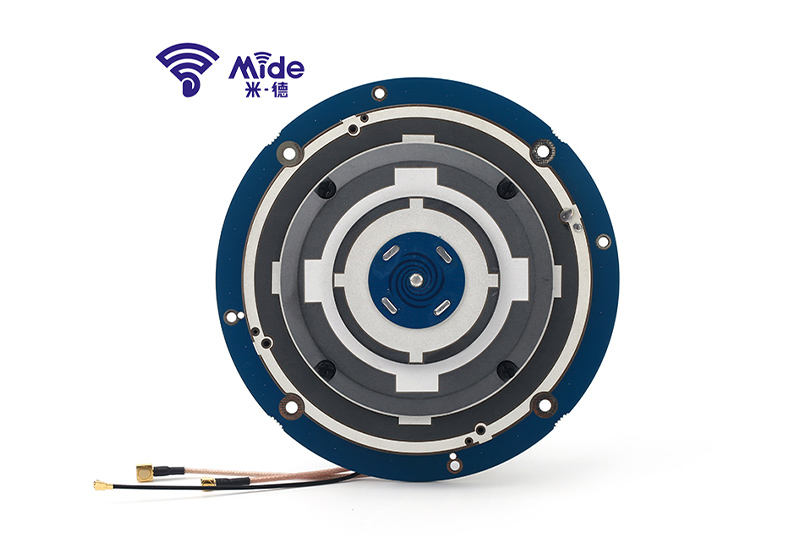

Geodetic Antenna LCY4N03A

LCY4N03A adopts a multi-feed point design to ensure the coincidence of the antenna phase center and the geometric center, providing measurement accuracy. Built-in low-noise amplifying module, using pre-filter and multi-stage filter to filter out interference signal, to ensure normal operation in harsh electromagnetic environment. Small size and light weight, effectively reduce the weight of the equipment.

Product Features

Product Advantages

Product Advantages

Comprehensive GNSS support, including GPS, GLONASS, Beidou and Galileo

Robust low-elevation satellite tracking

Adopts multi-feed point design, ensures the performance of right-hand circular polarization and phase center, reduces the influence of measurement error.

An internal multi-path-rejection board eliminatesmulti-path interference errors

High Gain, good reception for low-elevation satellite signals,ensure the signal can still be received normally in some severely occluded occasions.

Specifications

Antenna
Frequency Range(MHz)GPS L1/L2/L5
GLONASS L1/L2
BD B1/B2/B3
GALILEO E1/E2/E5a/E5b
BT/WIFI
Mobile Communication 4G
Maximum Gain(dBi)GNSS: 5.5dBi
BT/WIFI: 1dBi
Mobile Communication 4G:0.5dBi
VSWR≤2.0
Antenna AR (dB)≤3.0
Phase Center Error(mm)±2
PolarizationRHCP
Port Impedance(Ω)50Ω
LNA
LNA Gain(dB)40±2
Noise Figure≤2.0
Band Flatness±2dB
Operating Voltage(V)3.3-12 VDC
Operating Current(mA)≤45mA
Differential Transmission Delay≤5ns
Physical
Connector TypeGNSS:MCX-JW
BT/WIFI:IPEX
Mobile Communication 4G:MMCX-JW
Antenna size(mm)Φ127.5×27 mm
Antenna Weight(g)≤230g
Operating Temperature(℃)-40-+85 ℃
Storage Temperature(℃)-55-+85 ℃
Humidity95% No Condensation
